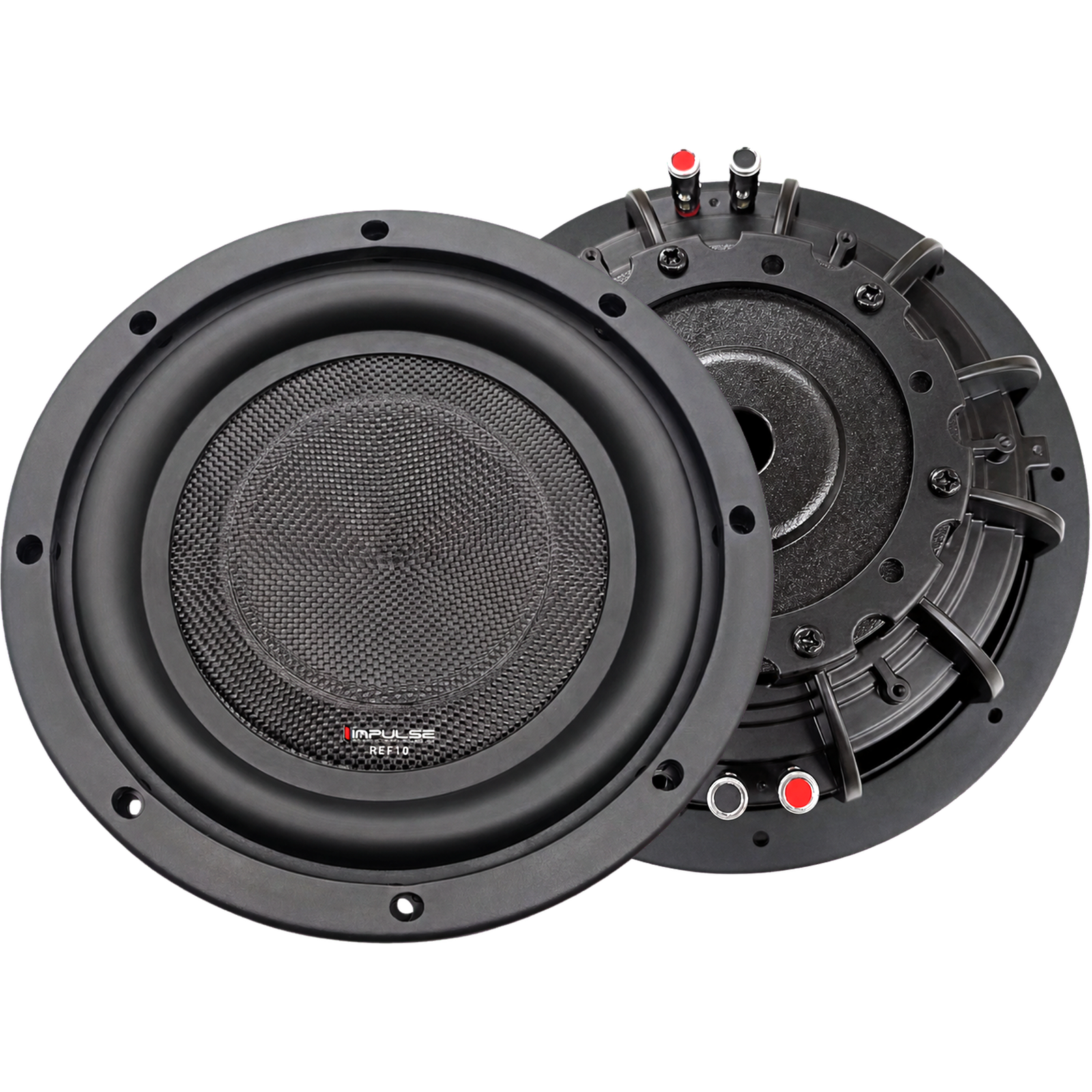

IMPULSE REF10 — Engineered for Fast, Controlled Low-Frequency Output
The IMPULSE REF10 is a compact 10-inch automotive subwoofer designed for strong bass output with accurate transient response. Its carbon-fiber cone combines low moving mass with high rigidity, helping the driver remain controlled during demanding low-frequency passages. A die-cast aluminum basket provides a stable mechanical platform and minimizes unwanted frame resonance.
The high-force motor structure delivers a BL factor of 20.29 T·m, providing firm electromagnetic control over the cone. With a 36 Hz free-air resonance and 25-liter equivalent compliance volume, the REF10 is well suited to space-conscious car-audio installations when used in a properly modeled enclosure.
Dual 4-ohm voice coils provide useful amplifier-matching flexibility. They can be connected in parallel for a 2-ohm final load or in series for an 8-ohm final load. Secure terminals help maintain a reliable, low-resistance connection at higher output levels.
Specifications
- Nominal diameter: 10 inches
- Voice-coil configuration: Dual 4 ohms
- Wiring options: 2 ohms parallel / 8 ohms series
- Maximum power handling: 500W
- Sensitivity: 92 dB
- Stated frequency range: 36 Hz–3 kHz
- Free-air resonance, Fs: 36 Hz
- Mechanical Q, Qms: 3.85
- Electrical Q, Qes: 0.13
- Total Q, Qts: 0.13
- Motor-force factor, BL: 20.29 T·m
- Moving mass, Mms: 120.71 g
- Suspension compliance, Cms: 0.15 mm/N
- Equivalent compliance volume, Vas: 25 L
High motor control, flexible impedance and authoritative bass from a compact 10-inch platform.
